AC2 Compact Regulator

SKU: HX788051
Type: DIN
Color: Black
Price:
R 5,415.00 ZAR

Send us a Whatsapp

Technical Specs

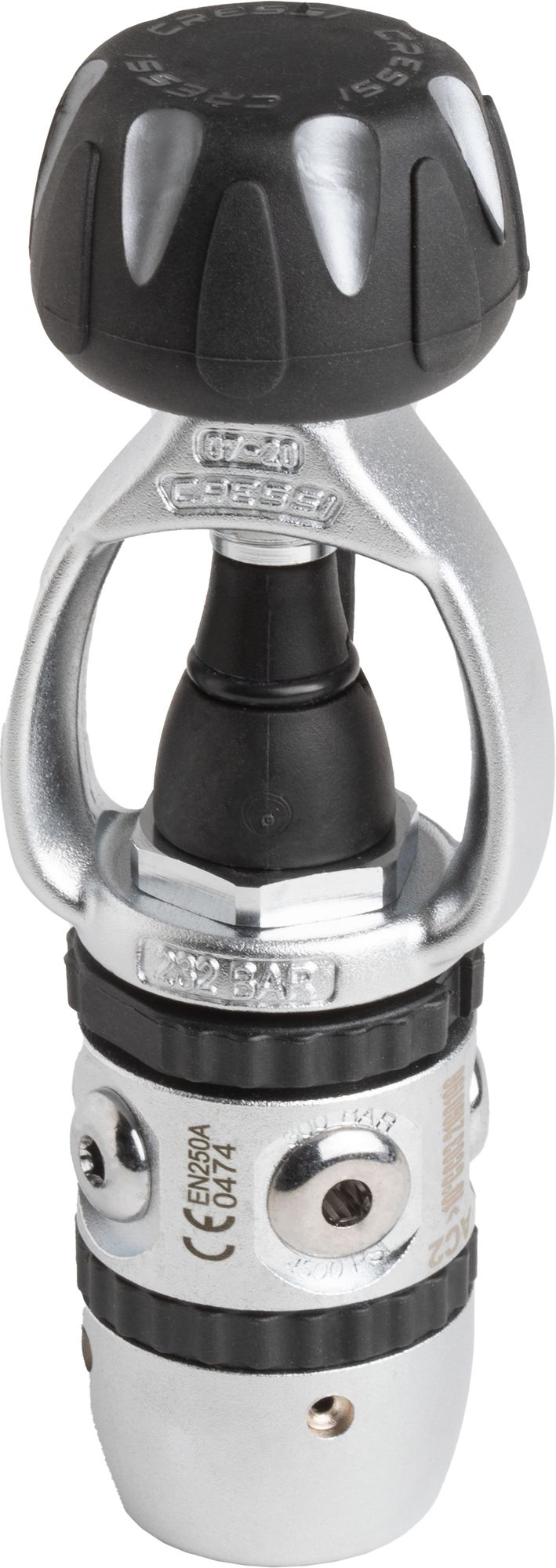

  • Technical features 1st stage
  • Unbalanced piston
  • 1 outlets hp 7/16 unf
  • 4 outlets mp 3/8 unf
  • Service pressure: 300 bar (4350 psi) din version, 232 bar (3365 psi) yoke version
  • Calibration pressure: 9,5-10 bar
  • Brass body electroless nickel plated
  • High capacity conical filter electroless nickel plated
  • Aisi 316 long lasting piston
  • Easy external direct ip adjustment system
  • Stainless steel spring
  • Flow rate: 2100 l/min
  • Yoke version weight: 635 gr din version weight: 495 gr
  • Technical features 2nd stage
  • Downstream system
  • Adjustable venturi effect
  • Patented antifriction lever
  • Big purge button
  • Anti-scratch surface
  • Bayonet-type cap holder with security lock
  • Removable exhaust tee without tools
  • Weight without hose: 135 gr
  • Jacketed hose extremely light and flexible weight: 153 gr
  • Certification en250/2014 a>10° c
  • Set (int) + hose tot. weight 923 gr
  • Set (din) + hose tot. weight 783 gr

Description

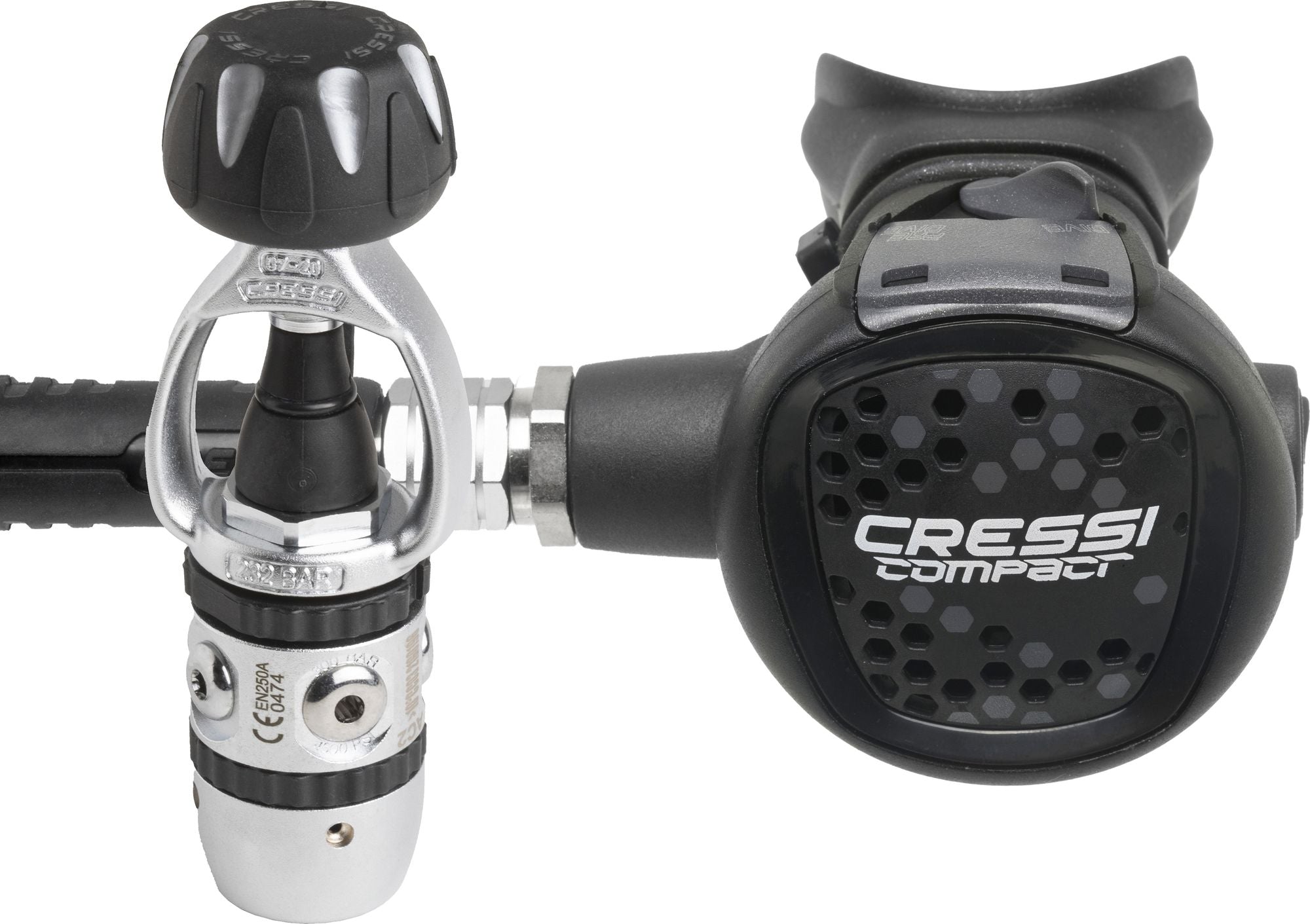

This regulator is made up of the new 2nd stage xs compact with elastomer cover combined comes with the traditional cressi ac2 piston 1st stage. Its strengths lie in its extreme lightness, excellent performance, very easy maintenance and affordable purchase price.
