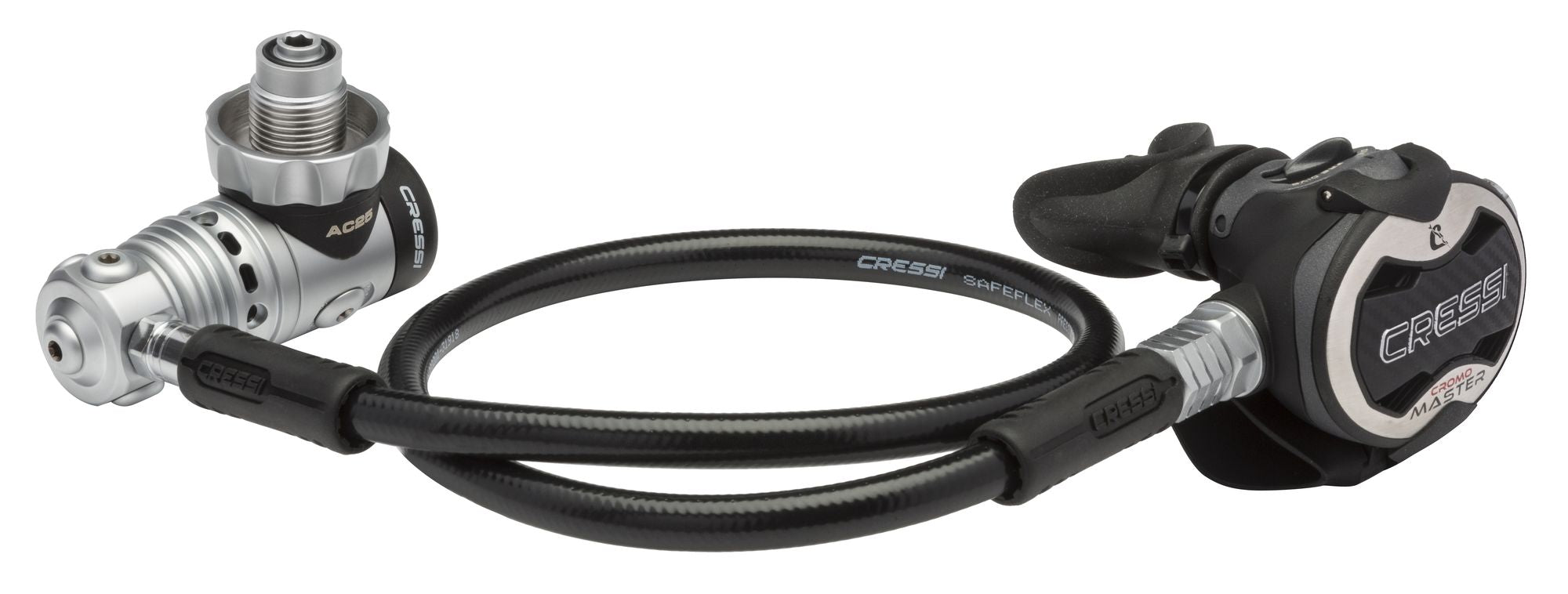

AC25m Master Chrome Regulator - Din

SKU: HX900100

Color: Black/Silver
Sale priceR 13,080.00 ZAR
Technical Specs

Technical features 1st stage
• 3rd generation cressi’s ip adjustable balanced piston fi rst stage
• 2x 7/16” hp ports unf
• 5x 3/8” lp ports unf, 1 port on turret top
• Operating pressure:
• Int version: 230 bar | 3,336 psi
• Din version: 300 bar | 4,351 psi
• Calibration pressure: 9.8÷10 bar | 142÷146 psi
• 360° revolving head
• Realized in brass-coated, with a matte finish
• The sintered conical filter protects from any impurity
• Technical features 2nd stage
• Pneumatically balanced
• Adjustable venturi
• Adjustable inhalation effort
• Patented elliptical diaphragm
• Patented low-friction lever
• Air delivery system without injector
• Adjuster knob coated with pvd process with dual or
• Internal heat exchanger
• Cap opening with cam-lock
• Noise-absorbing technopolymer body
• Removable technopolymer deflector
• Removable mechanics
• Weight without hose: 207 gr
• Combination performance
• Average breathing effort 0.78 j/l
• Jacketed hose extremely light and flexible weight: 153 gr
• Certification en250/2014 a>10° c

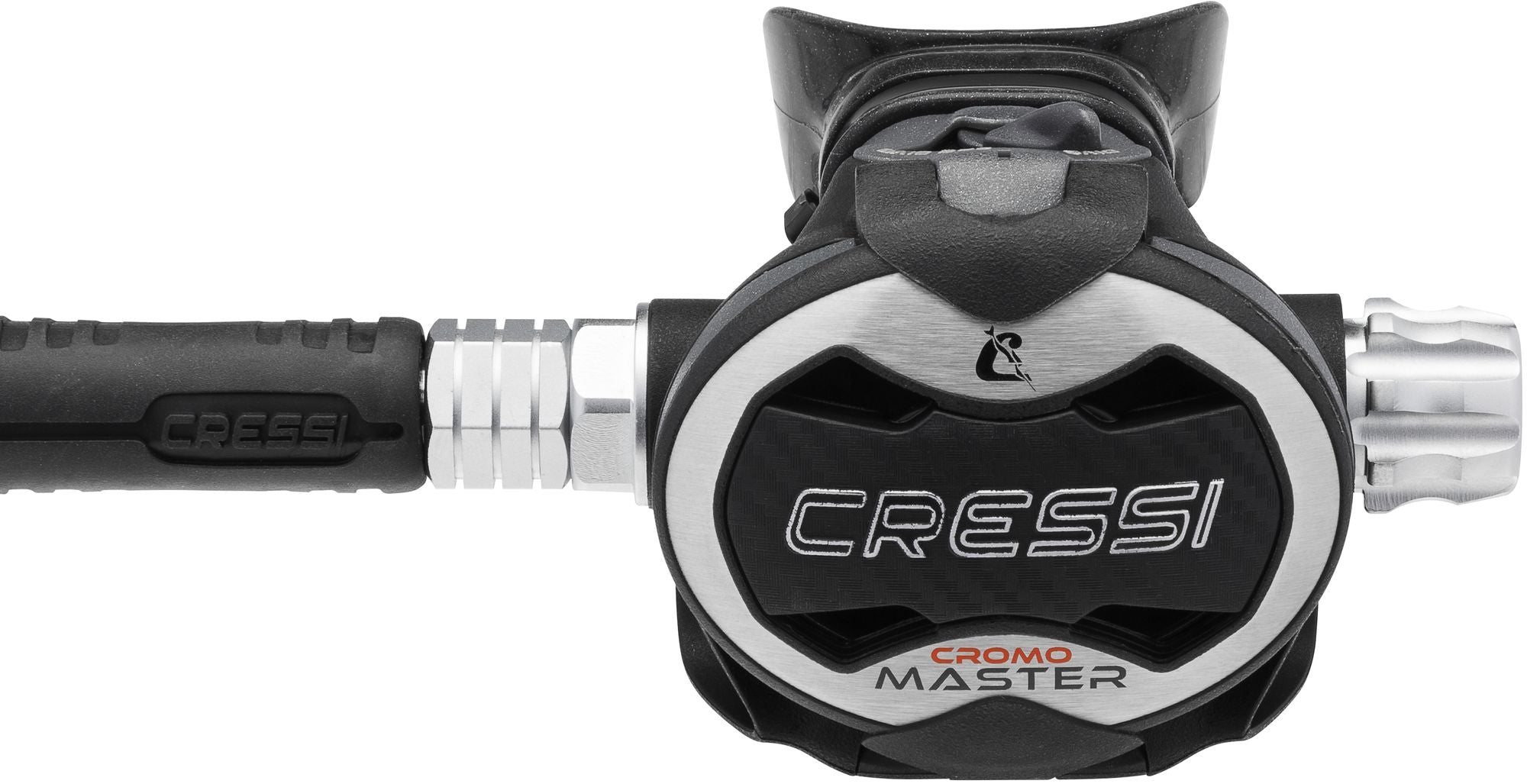

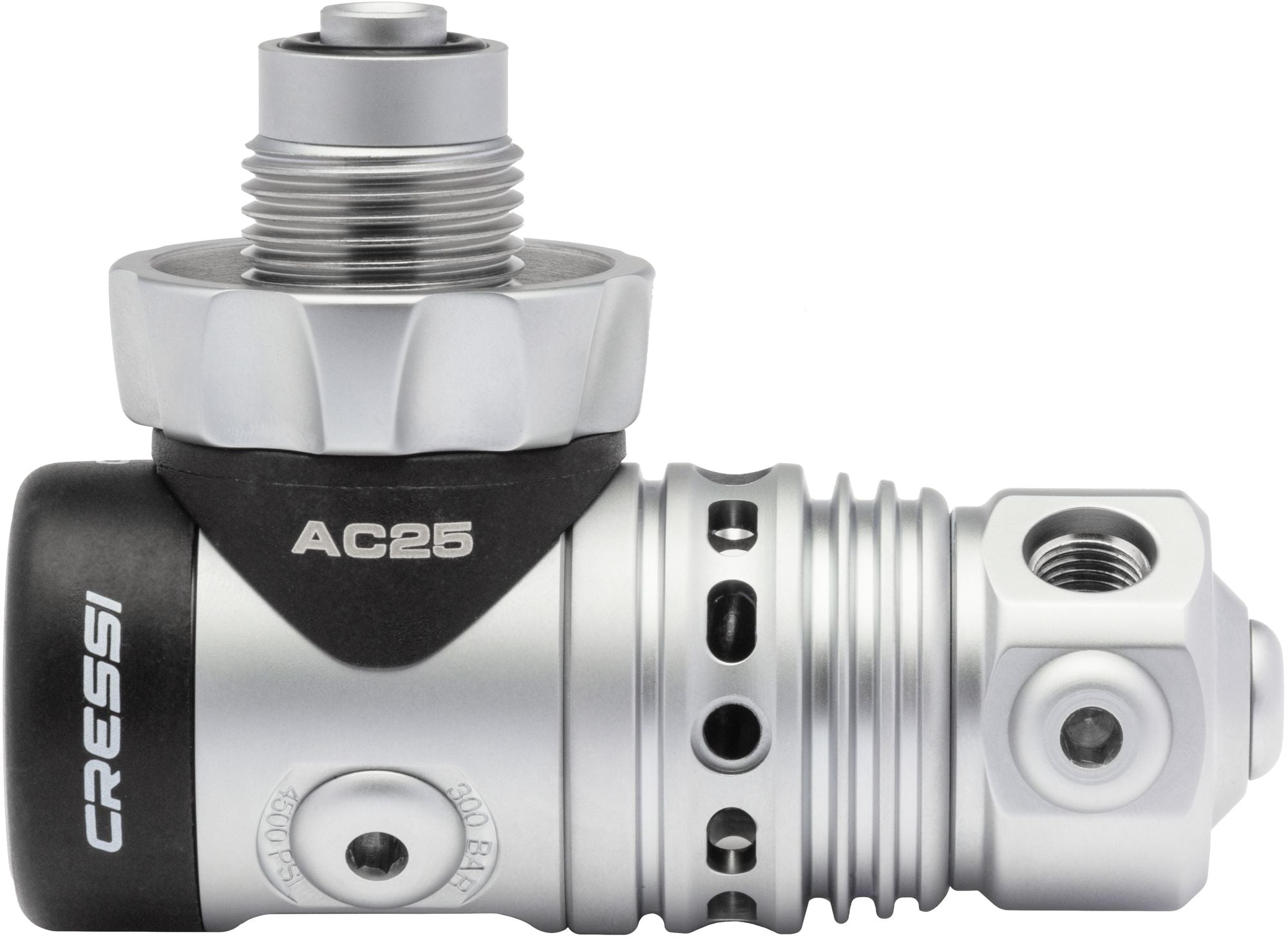

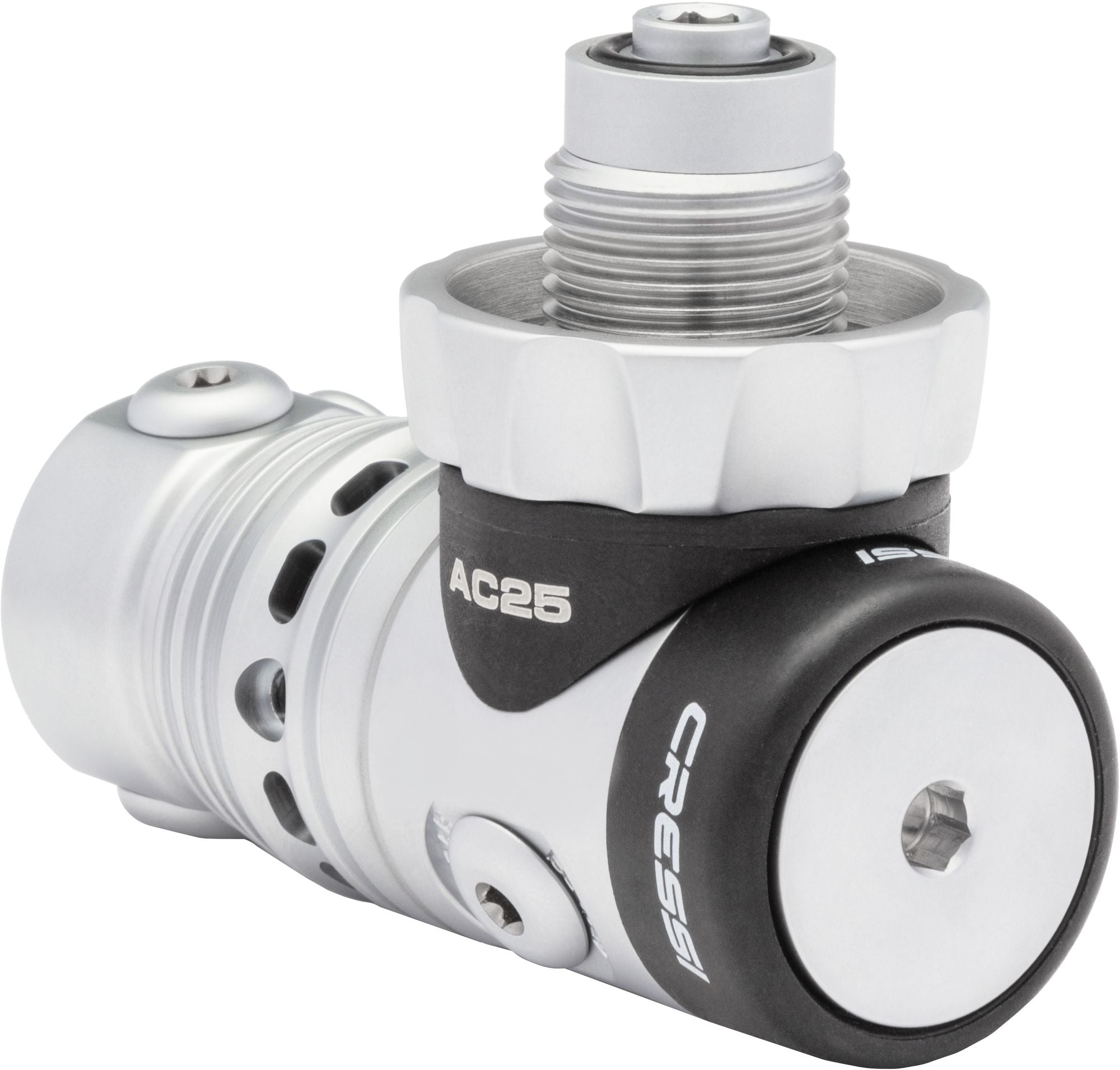

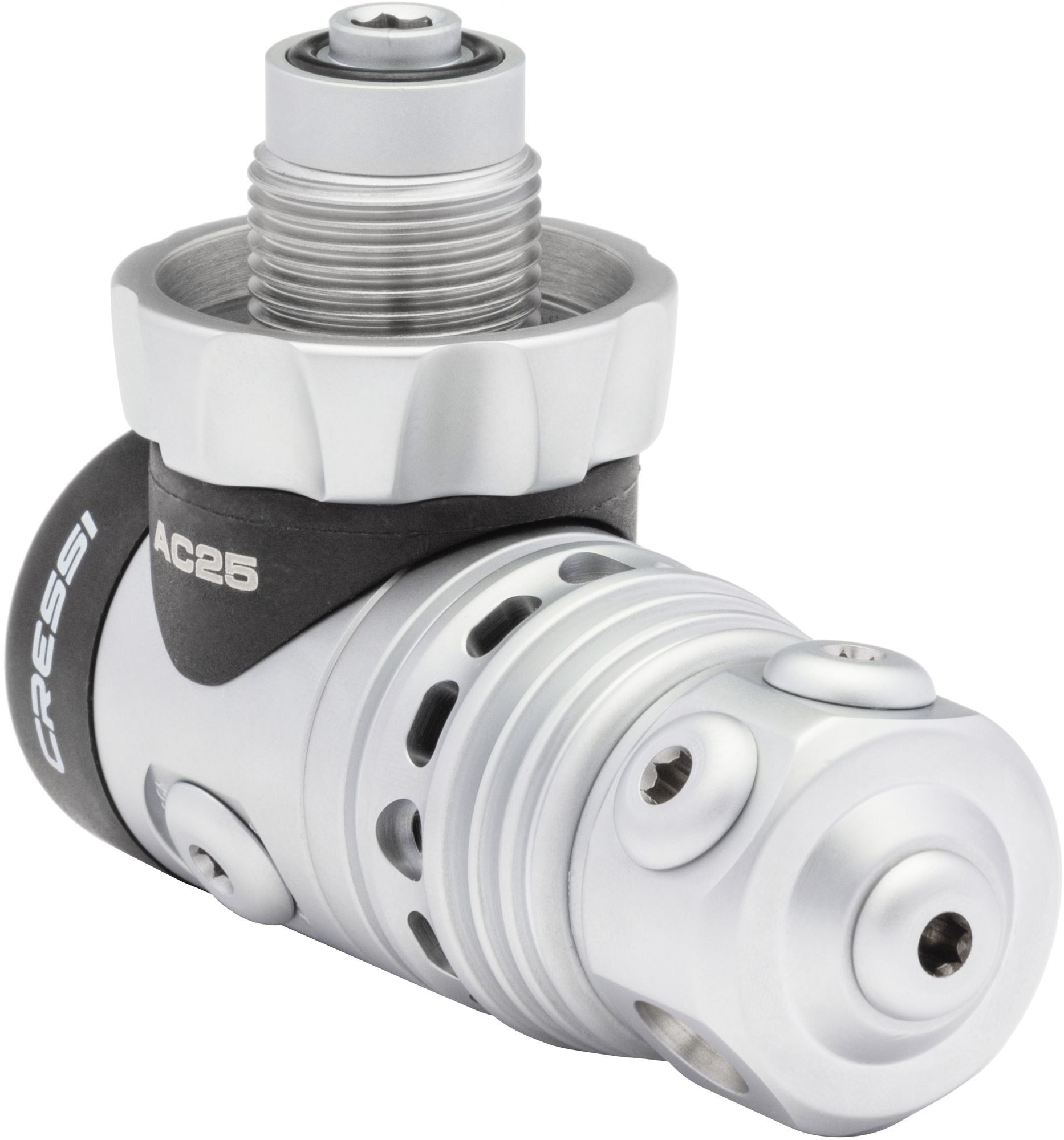

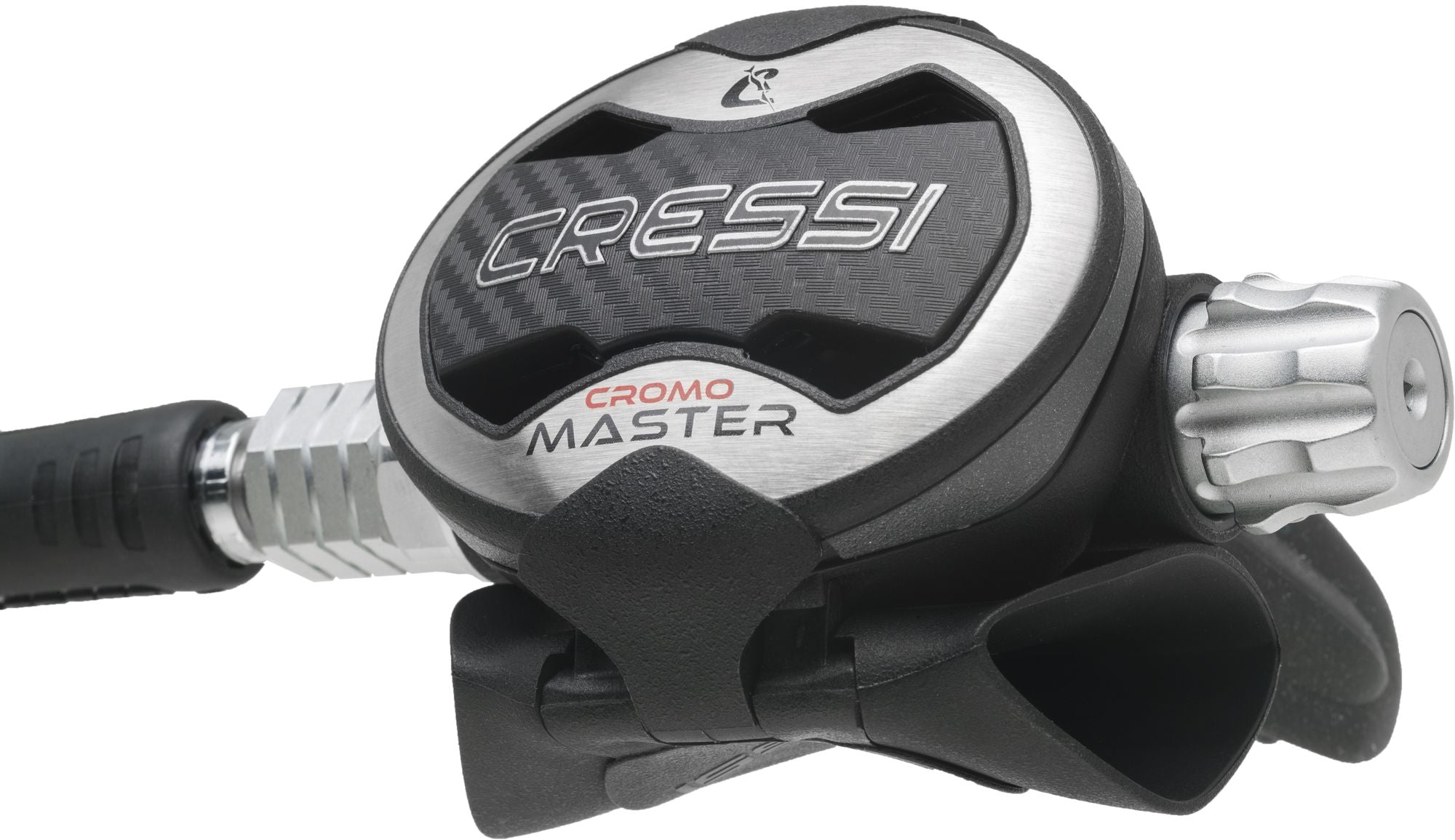

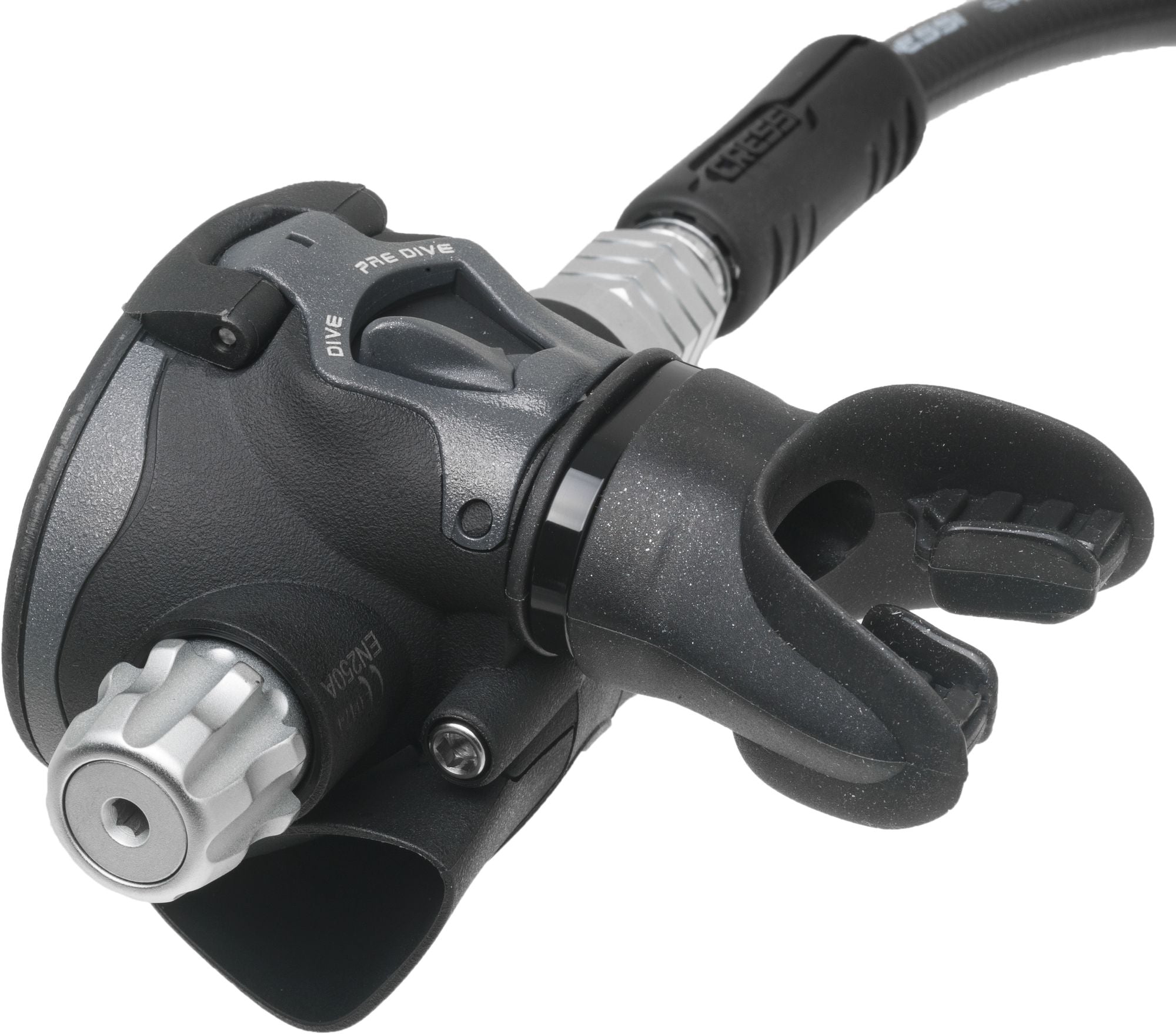

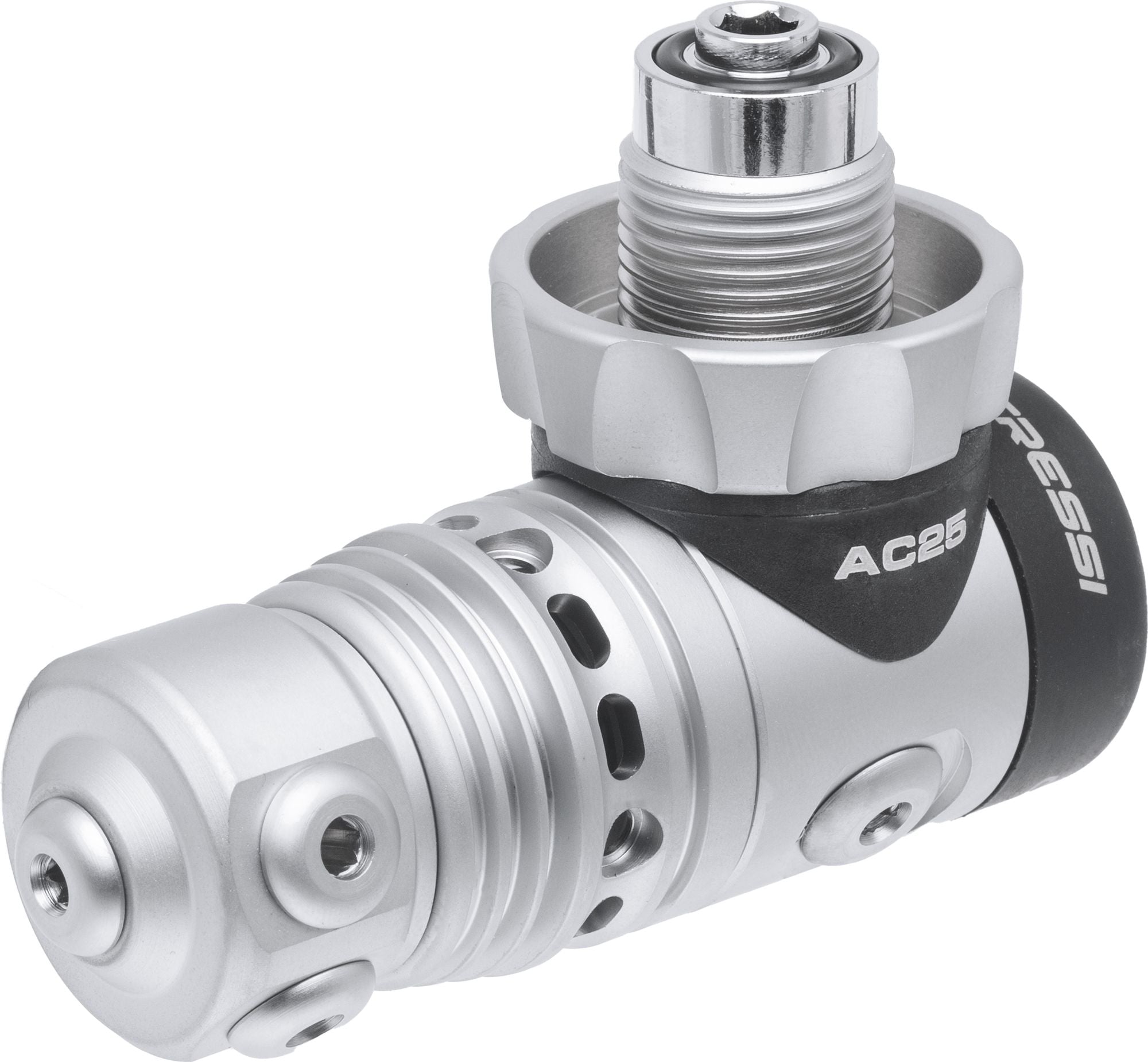

The ac25 is the third generation of cressi’s ip adjustable balanced piston first stage. It features 2 high-pressure ports and 5 lowpressure ports. 4 low-pressure ports are located on a rotating turret that ensures that regulator and instrument connections are always in the right position. The fifth port is a co-axial hi-flow port and is located at the top of the turret. The rotating turret swivels on 360° axis and features 5 low-pressure ports designed to allow the use of more connections without interfering between them. It features the external direct ip adjustment system that can be set using a simple allen key. The hi-flow conic shape filter is the same for int and din. The spring and the spring bush are coated preventing rust. Its technologically advanced design delivers consistent intermediate pressure and high performance even with low tank pressures. The ac25m it features a matte finish, in gun metal-coated brass. It is combined with the master cromo, the pneumatic balanced 2nd stage that features an elliptical shape and a lateral knob for venturi adjustment
